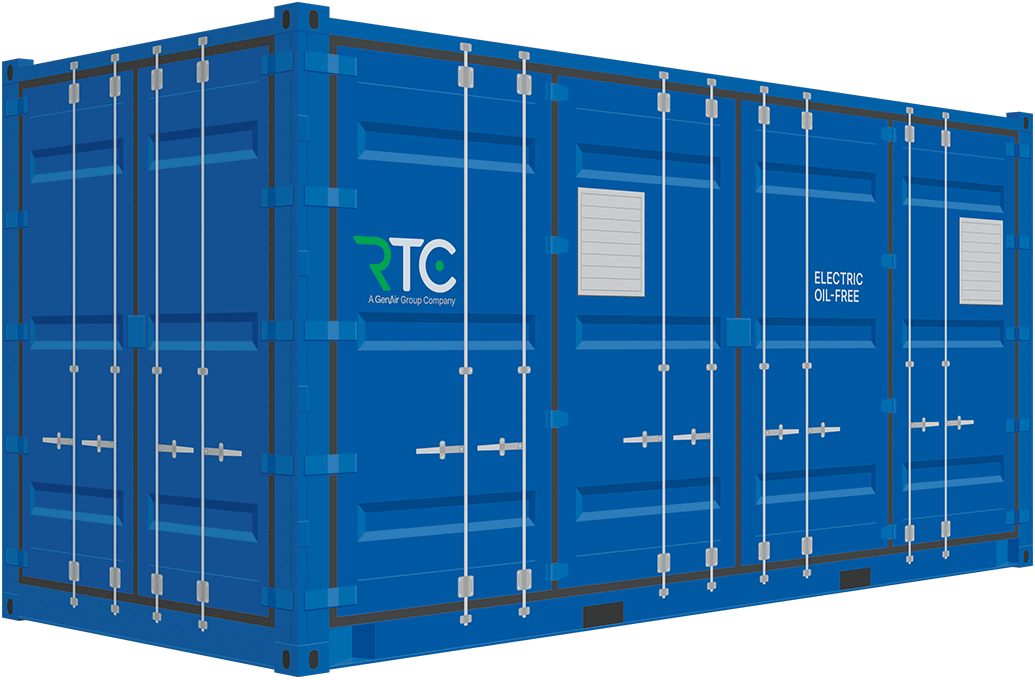

RTC Rental C115 106m³/min Electric 100% Oil Free Centrifugal Air Compressor Hire
RTC C115 3-stage 100% oil-free centrifugal air compressor, with electric drive delivering 106m³/min at 9.5 bar(g) of Class Zero quality air.
- Five axis precision machined stainless steel impellers for maximum energy savings in all conditions
- Complete tested package with built-in lubrication and cooling systems
- Flange mounted motor for permanent alignment
- Complete control, protection and diagnostic system
- Integral water-cooled inter- and aftercooler with single point flanged connections for air and water
- Inlet air filter with and separate by-pass silencer
Request a quote
Download full spec sheet
Request a quote
Tell us what you need and our rental team will get back to you.Technical Specifications
| Parameter | Value |
|---|---|
| MAX. CAPACITY | 106m³/min (6300m³/h – 3700cfm) |
| MAX. WORKING PRESSURE | 9.5 Bar(g) – (112 PSI (g)) |
| DISCHARGE AIR CONNECTION | DN100-PN16 |
| COOLING | Water cooling |
| COOLING PRESSURE | 2 Bar – max. 5 Bar |
| COOLING FLOW | 750 l/min |
| COOLING HEAT LOAD | 475157 Kcal/h |
| COOLING INLET TEMP. | 15°C (CTD 14°C) |
| COOLING CONNECTION | DN100-PN10 |
| ABSORBED POWER | 700 kW |
| VOLTAGE | 6000 V, 50 Hz |
| AUXILIARY POWER | 400 V, 3 Ph, 50 Hz, 16 A |
| GROSS WEIGHT | 11,000 kg |
| DIMENSIONS | 6100 x 2440 x 2590mm |
| SOUND PRESSURE | <80db(A) (EN ISO 2151:2004) |
