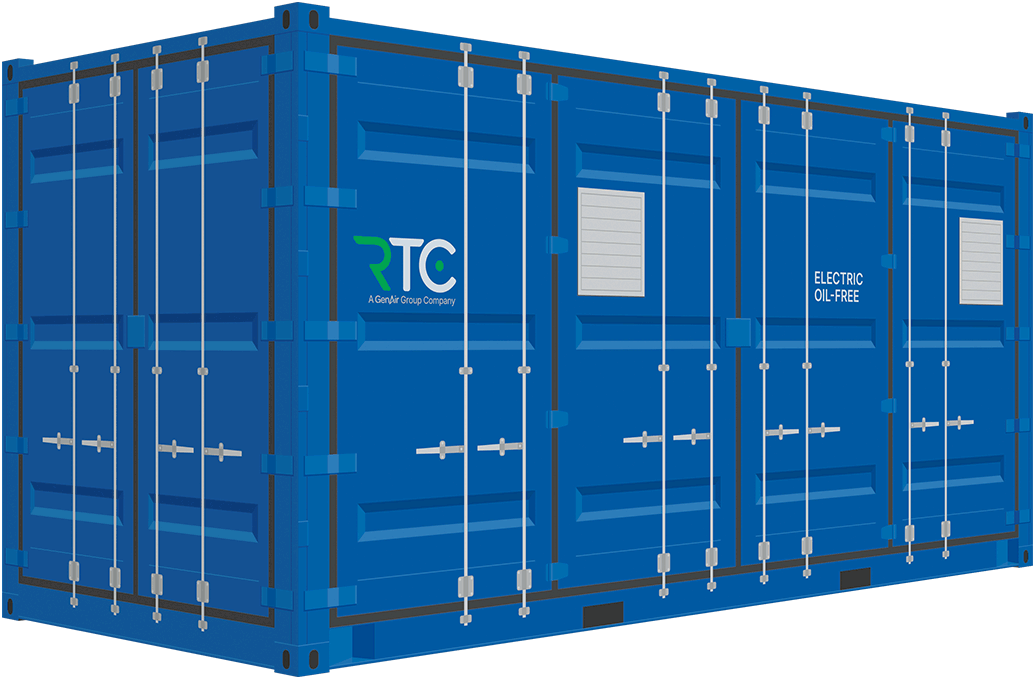

RTC Rental WS2190S 45m³/min Electric 100% Oil Free Booster Air Compressor Hire
RTC WS2190S 2-stage 100% oil-free booster compressor, with electric drive delivering 45m³/min at 40 bar(g) of Class Zero quality air. Requires an inlet pressure of 10 bar(g).
- Complete tested package with built-in lubrication and cooling systems
- Belt driven motor
- Complete control, protection and diagnostic system
- Integral water-cooled inter- and aftercooler with single point flanged connections for air and water
- Fully containerised package with discharge air buffer tank (42 Bar(g))
Request a quote
Download full spec sheet
Request a quote
Tell us what you need and our rental team will get back to you.Technical Specifications
| Parameter | Value |
|---|---|
| MAX. CAPACITY | 45m³/min (2700m³/h – 1590cfm) |
| INLET PRESSURE | 10 Bar(g) – (140 PSI (g)) |
| INLET CONNECTION | 3” Camlock Male |
| DISCHARGE PRESSURE | 40 Bar(g) – (560 PSI (g)) |
| SAFETY VALVE SETTING | 42 Bar(g) – (588 PSI (g)) |
| DISCHARGE CONNECTION | G2” (80 Bar) |
| COOLING | Water cooling |
| COOLING PRESSURE | min. 3 Bar – max. 5 Bar |
| COOLING FLOW | 266 l/min |
| COOLING CONNECTION | 3” Camlock Male (IN / OUT) |
| VOLTAGE | 400 V, 50 Hz, 3 Ph |
| RATED SPEED COMP | 890 rpm |
| AUXILIARY POWER | 400 V, 3 Ph, 50 Hz, 16 A |
| GROSS WEIGHT | 11,500 kg |
| DIMENSIONS | 6100 x 2440 x 2590mm |
| SOUND PRESSURE | <80db(A) (EN ISO 2151:2004) |
